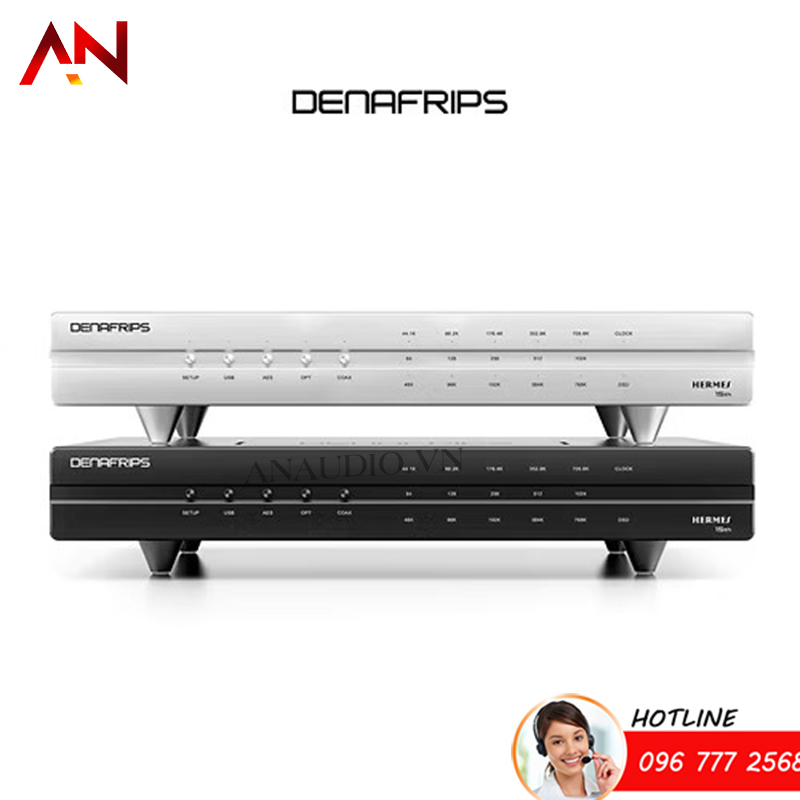

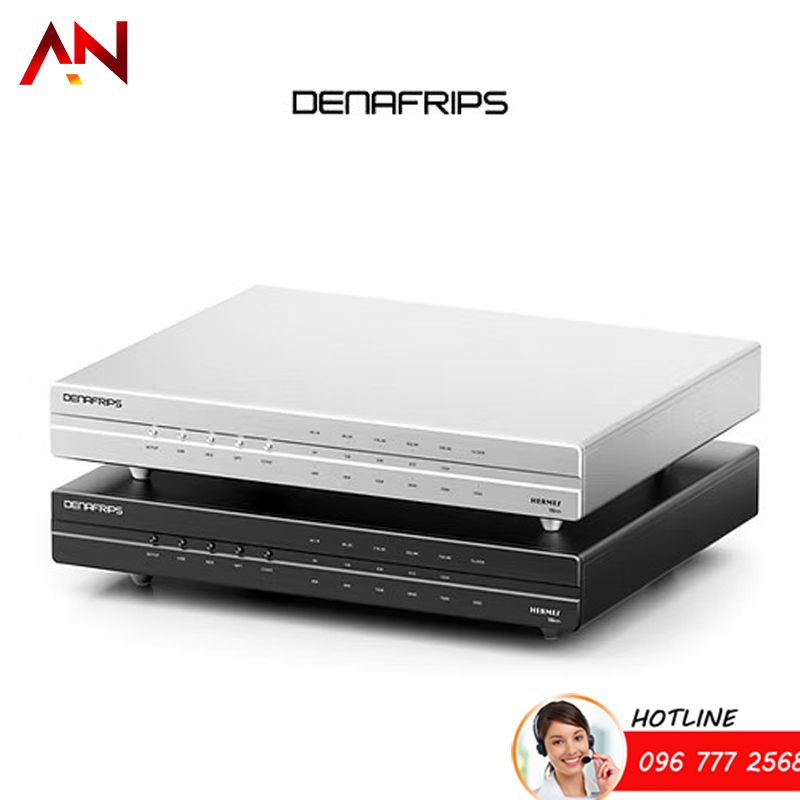

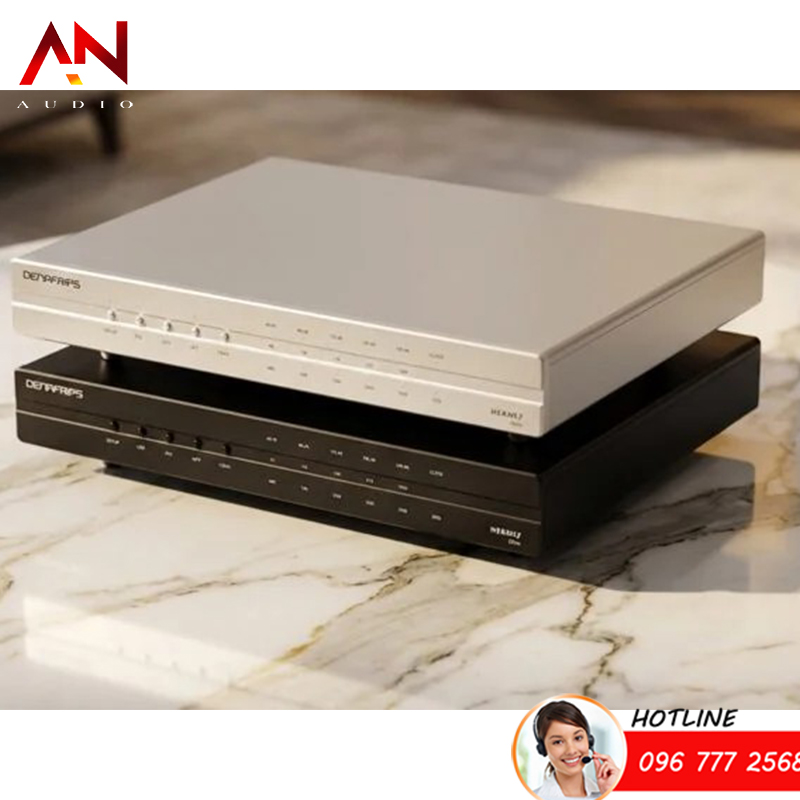

DAC DENAFRIPS HERMES 15H

Technical Highlights

Technical Highlights

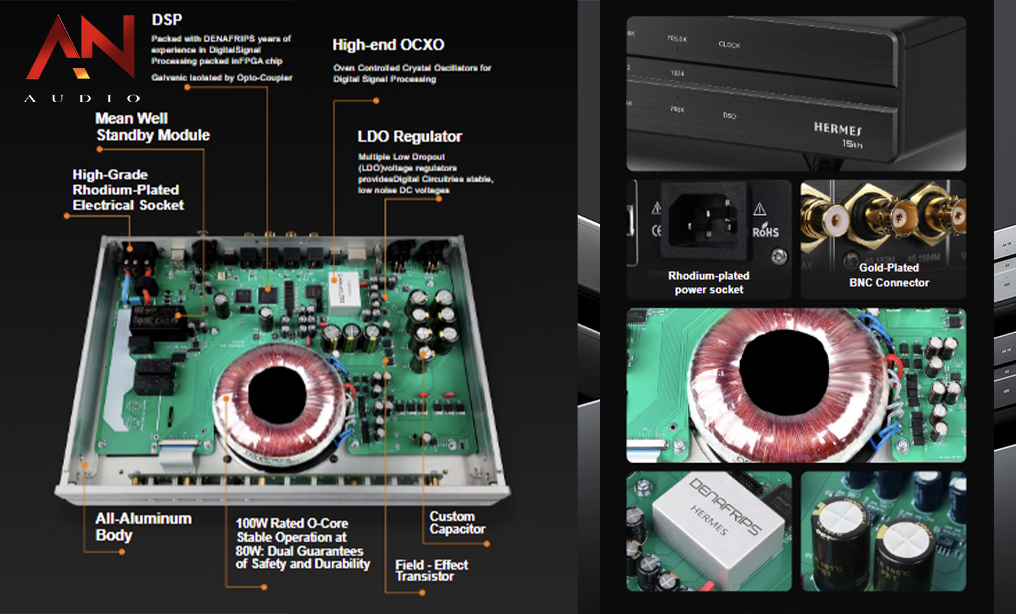

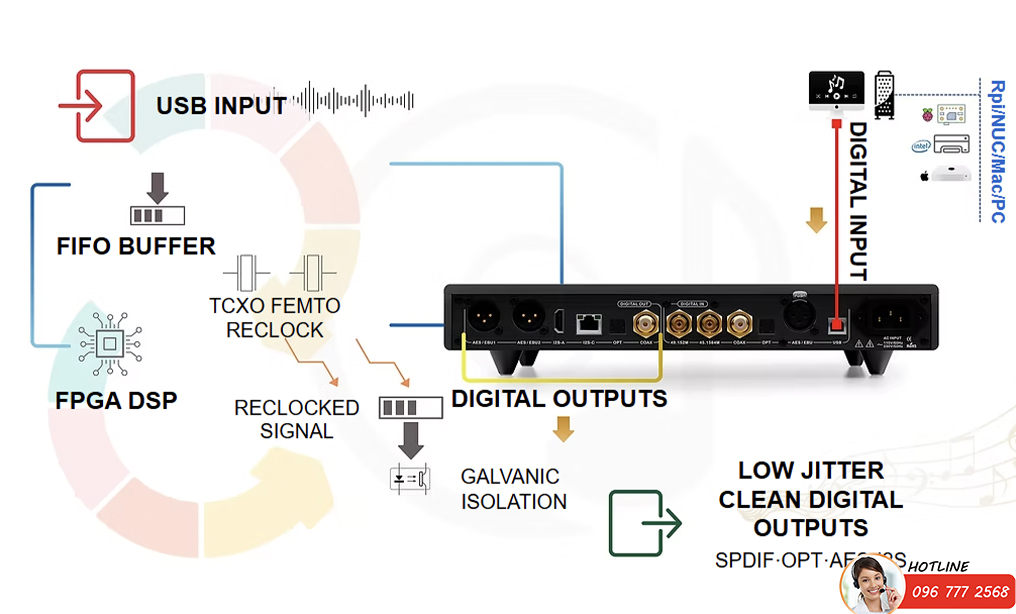

• Proprietary FPGA DSP Processing Architecture

• FIFO Buffer and Reclock with Internal Crystal

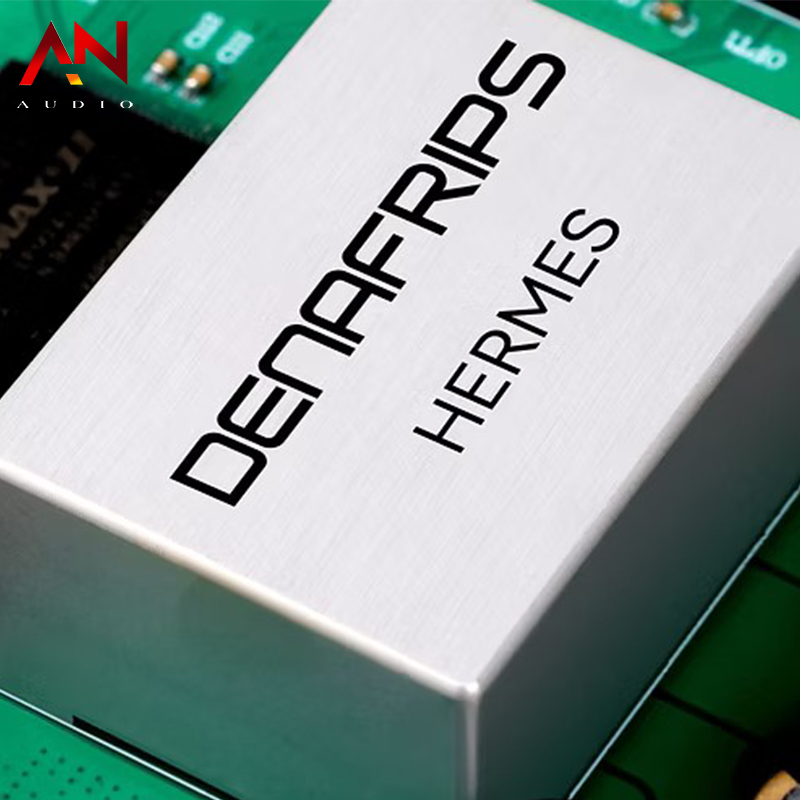

• Precision Oven Controlled Crystal Oscillator OCXO

• Optical Isolated All Digital Input Interfaces

• Proprietary USB Audio Solution via STM32F446 Advanced AMR Based MCU

• Licensed Thesycon USB Driver For Windows Platform

• Driverless On Mac & Linux

• Dual AES/EBU Output Supported

• External Clocks Input Supported

• 60VA UPOCC Copper O-Core Transformer

DSD

• DSD64 (DoP) on Coax/AES/Opt Input & Output

• Upto DSD512 On USB Input & I²S Output

PCM

• 24bits / 44.1, 48, 88.2, 96, 176.4, 192KHz On All Input & Output

• Up to 768KHz On USB Input & Up to 384KHz on I²S Output

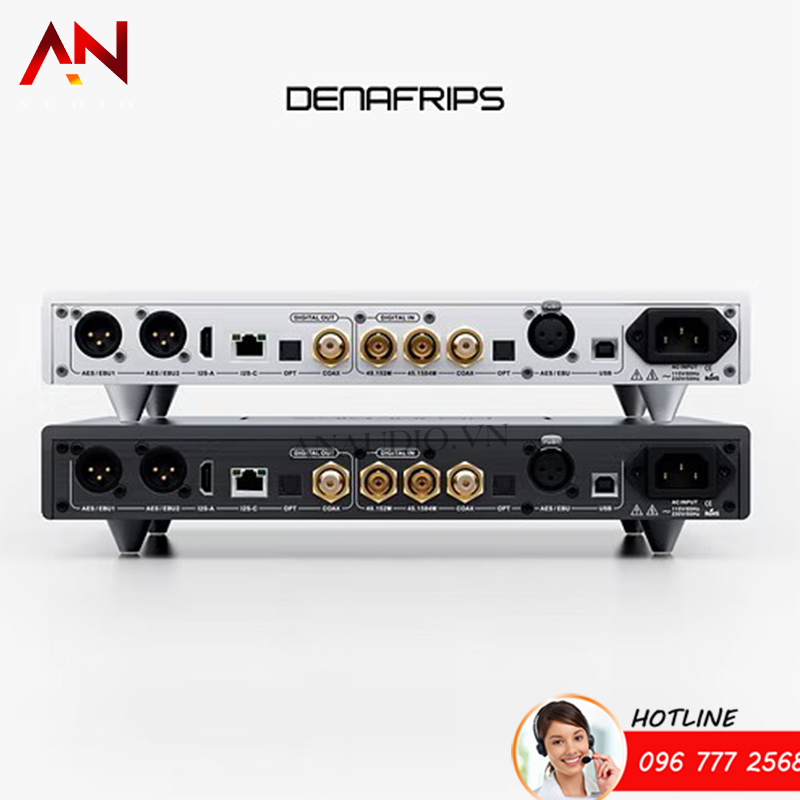

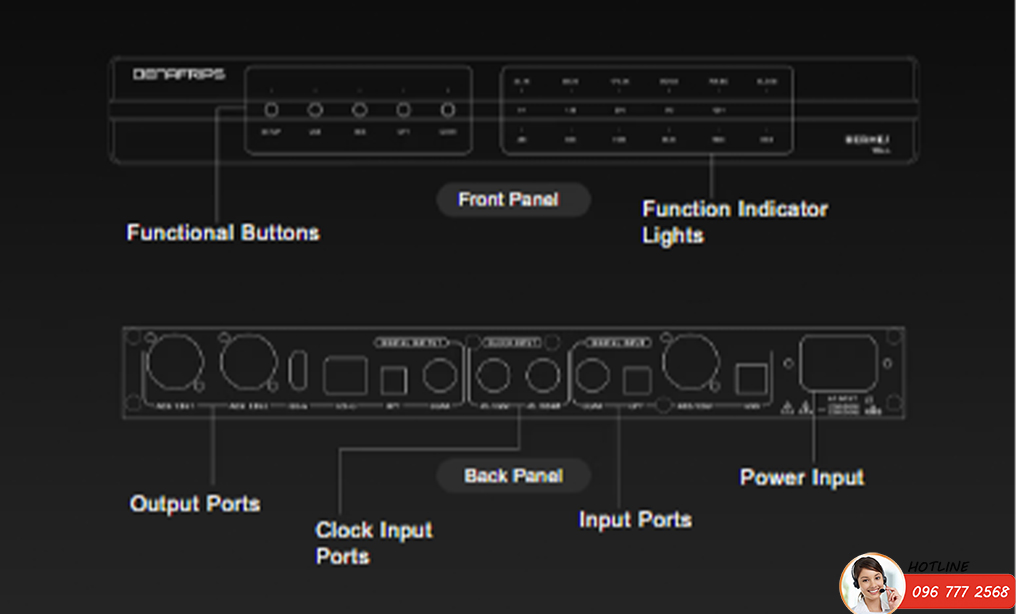

Digital Input

• Coax SPDIF via RCA

• TOSLink x 1

• AES/EBU x 1

• USB2.0 Type B

External Clock Input  BNC 75Ω

• 45.1548MHz

• 49.152Mhz

Digital Output

• Coax SPDIF via RCA

• TOSLink x 1

• AES/EBU x 2

• I²S HDMI LVDS Standard

• I²S RJ45 LVCMOS Standard

AC Power Requirement: 100-240VAC, 50/60Hz (Worldwide Voltage)

Power Consumption: ≤20W

Dimension: 330W x 240D x 50H mm (Feet +18mm)

Package Content: DDC. No remote control & Power Cord.

Weight: 4.5 Kg
